Description
Efficient and Reliable Power Delivery
This 650W power supply, certified 80 Plus Bronze, ensures 85% energy efficiency, minimizing heat and power waste. With Active PFC and robust protection systems (OVP, UVP, SCP, OPP), it delivers consistent and safe performance. The 120mm FDB fan ensures quiet, effective cooling, perfect for powering mid-to-high-range builds with reliability and efficiency.
80 Plus Bronze Certification
Enjoy up to 88% energy efficiency at 50% load and consistent 85% efficiency at both 20% and 100% loads. The 80 Plus Bronze certification ensures optimized energy use, reduced heat, and reliable performance for your system.
Practical Connectivity
This PSU offers a balanced range of connections to support essential components in your system. With compatibility for modern motherboards, CPUs, GPUs, and storage devices, it ensures a reliable foundation for most PC setups. Ideal for straightforward builds, it provides the flexibility you need without unnecessary complexity.

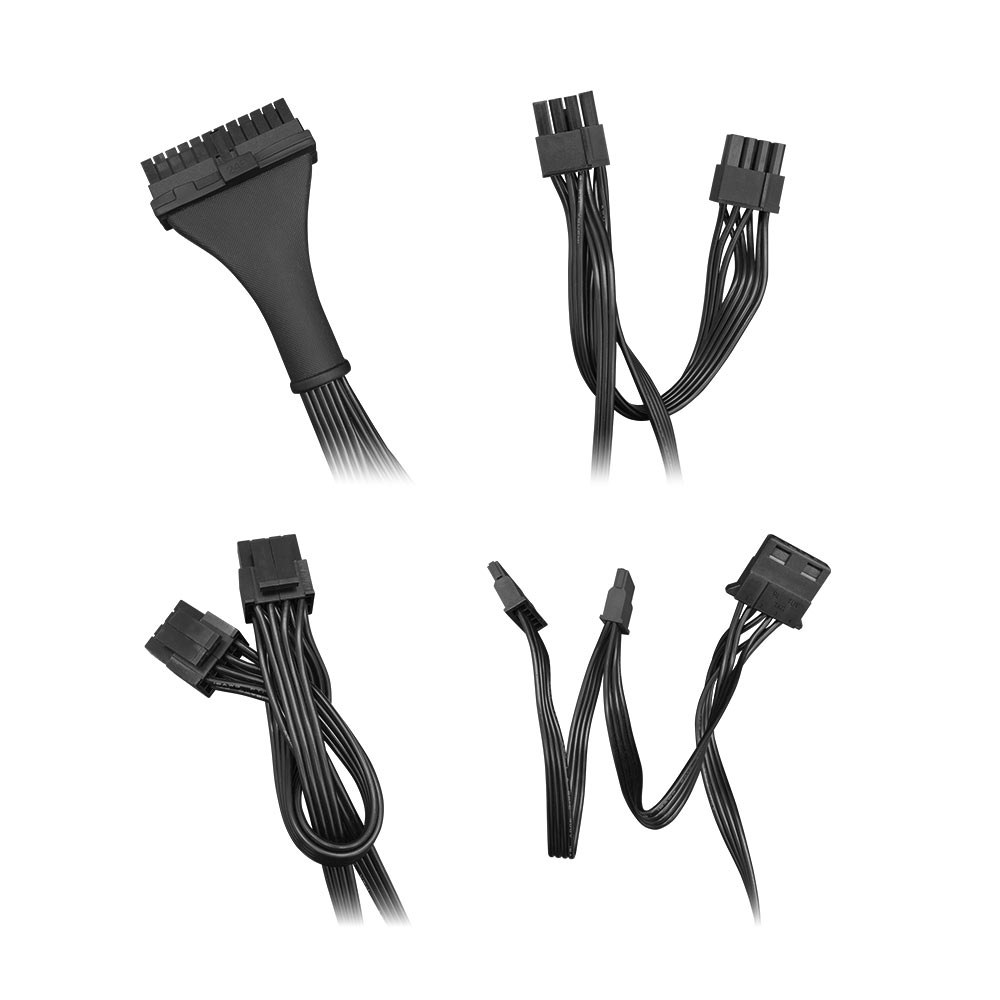

PSU Connections
1x 24 pin
Motherboard
2x 4 + 4 pin CPU
2x 6 + 2 pin
PCI-Express
6x SATA
3x Molex

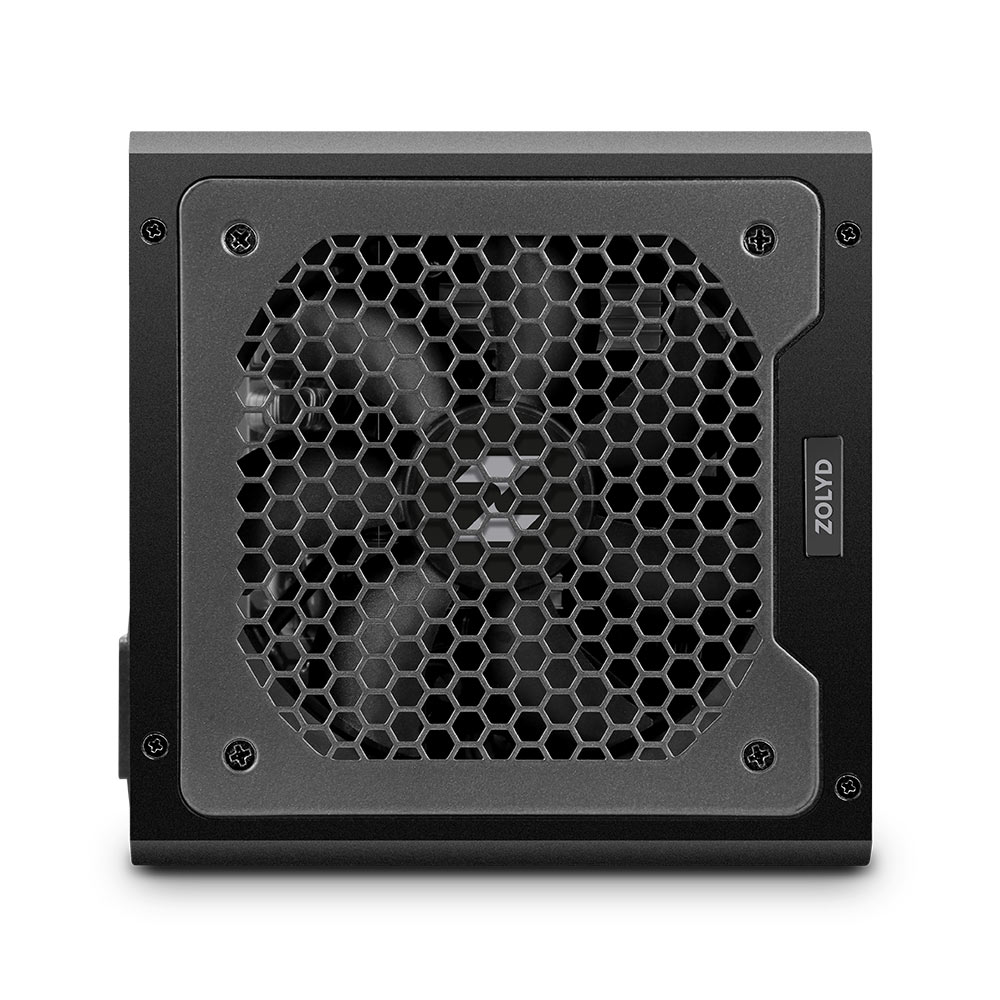

Efficient and Silent Operation
Equipped with a 120mm Fluid Dynamic Bearing fan, this PSU ensures efficient cooling with low noise, delivering durability and smooth performance over time. The inclusion of Active PFC enhances energy efficiency and reduces power wastage.
Specifications
Max Power
650W
80 Plus Certification
Bronze
85% Efficiency with 20% Load
88% Efficiency with 50% Load
85% Efficiency with 100% Load
AC Input
176 Vac – 240 Vac / 5 A – 10 A / 50 Hz – 60 Hz

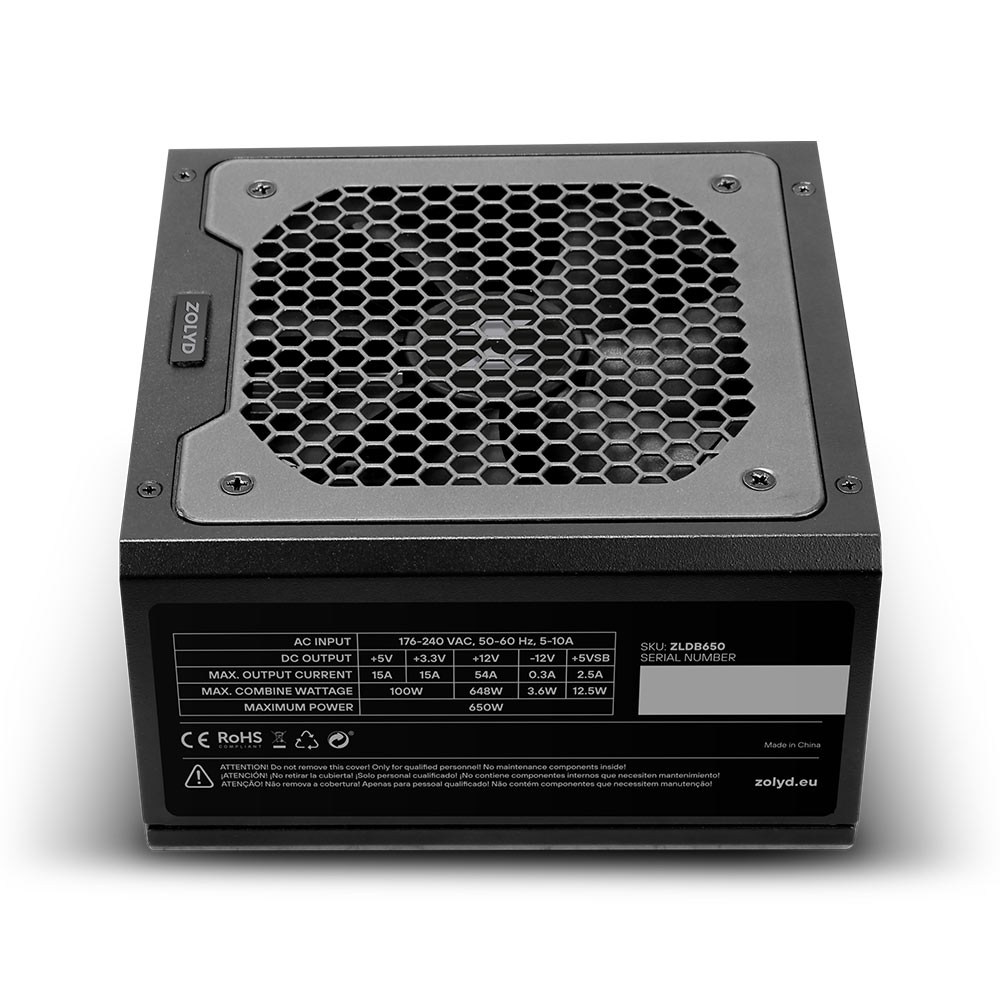

DC Output / Max Output Current / Max Combined Watts
+3.3 V / 15 A / 100 W
+5 V / 15 A / 100 W
+12 V / 54 A / 648 W
-12 V / 0.3 A / 3.6 W
+5 Vsb / 2.5 A / 12.5 W
Connections
1x 24 pin Motherboard
2x 4 + 4 pin CPU
2x 6 + 2 pin PCI-Express
6x SATA
3x Molex
Fan
12 cm Fluid Dynamic Bearing
Safety protections
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short Circuit Protection)
OPP (Over Power Protection)
Product dimensions
150 x 86 x 140 mm (L x H x D)
Logistics
ZOLYD B650 650W 80 Plus Bronze ATX PSU
SKU: ZLDB650
EAN: 5600413206911
Product package
Weight: 2 kg
Dimensions: 33 x 13 x 19.5 cm
Master package
Quantity: 6
Weight: 13.2 kg
Dimensions: 61 x 34.5 x 28 cm
